Temperature, Pressure and Speed Sensors

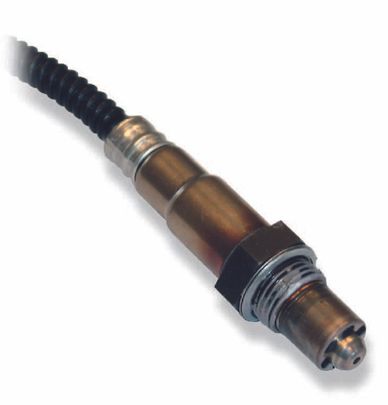

LSU 4.2 - Lambda Sensor


This sensor is designed to measure the proportion of oxygen in exhaust gases of automotive gasoline engines.

FEATURES

  • Exhaust gas temperature range (max.) for short time <1300°C
  • Max. Hexagon temperature 570°C
  • Wide-band

HT-TC-60 - Exhaust Temperature Sensor


FEATURES

  • Suitable for MAN gas Engines
  • Sensor type: K-Typ NiCr-Ni K
  • Output Voltage in mV for NiCr-Ni, Type K

BENEFITS

  • Max. Temperature: 1000 °C
  • Material (jacket): Inconel 600
  • Adapter fitting: Stainless steel 316L

THERMOELEMENT K-TYPE - Exhaust Temperature Sensor


FEATURES

  • Sensor type: Thermocouple 1 NiCr-Ni K
  • Output Voltage in mV for NiCr-Ni, Type K

BENEFITS

  • Max. Temperature: 1000 °C
  • Material (jacket): Inconel 600
  • Adapter fitting: Stainless steel 316L

PT-100 - Screw-in Resistance Thermometer


FEATURES

  • For temperatures from -50 to +300°C
  • Available with transmitter

BENEFITS

  • Highly resistant to shock and vibration
  • Connector locked in for reliable contact, IP65 or IP69K protection
  • GL approval for Type 902004/20

DMU-01 - Pressure Transducer


FEATURES

  • Measuring ranges -1…2.5 bar, or 1...4 bar
  • Temperature range of media -40°C to 125°C
  • No internal transmission media (fully welded, “dry” measuring cell)
  • High flexibility for options thanks to modular design
  • Plug systems MVS/A acc. to DIN EN 175301-803 A, MVS/C acc. to DIN EN 175301-803 E

BENEFITS

  • All standard signals for industry, hydraulics and pneumatics
  • Shock and vibration resistance > 1000 g shock, > 20 g vibration
  • Protection class IP67 (special version up to IP69K)
  • Compact and rugged model in stainless steel

HT-DTM-8473 0-2.5bar Absolut - Pressure Transducer


FEATURES

  • Measuring ranges 0…2.5 bar
  • Temperature range of media -40°C to 125°C
  • No internal transmission media (fully welded, “dry” measuring cell)
  • High flexibility for options thanks to modular design
  • Plug systems MVS/A acc. to DIN EN 175301-803 A, MVS/C acc. to DIN EN 175301-803 E

BENEFITS

  • All standard signals for industry, hydraulics and pneumatics
  • Shock 50g/8ms
  • Vibration 4g
  • Protection class IP65
  • Compact and rugged model in stainless steel

HT-MPU Speed Sensors


FEATURES

  • Variable Reluctance A/C Output
  • Durable & sealed construction
  • Accurate tracking / non-contact
  • Easy installation & alignment
  • Self-powered with no moving parts
  • -55C to +105C Operation

BENEFITS

  • Accurate control
  • High reliability
  • Low maintenance
  • Long life



Downloads

Temperature Sensors (pdf)

Download

HT-MPU-Datasheet-20170718 (pdf)

Download
