Hydraulic Starting

The Technology that turns engine faster. With over 90% efficiency Hydrotors cranks any engine size, from very small up to over 70 litres displacement. With various flanges, configurations pre-engage and soft cycle inertia starters, with a overhung pinion version, the Hydraulic starter can be fitted on any engine.

If no ring gear is available, starting over a PTO is also possible. Hydraulic Starters combine the high efficiency of the axial piston motor concept which provides high torque at any temperature or environment. Together with the soft engagement Valve Hydraulic starting guaranties a minimum wear of the engine ring gear and the pinion.

Hydraulic Starting Systems

Hand pump Starting System

Engine driven pump supported Starting System

Hand pump Starting System

FEATURES

Accumulator can be recharged easily and fast by hand pump
Simple connection to the Hydrotor with one hose kit only
Can be enhanced by additional pump for automatic recharging (EPS, MPS, APS)

BENEFITS

Compact and space-saving design
Economically advantageous All-in-One solution
Independent operation in emergency of total power failure

Compact Starting System

Engine driven pump supported Starting System

Hand pump Starting System

FEATURES

Accumulator can be recharged easily and fast by hand pump
Simple connection to the Hydrotor with one hose kit only

BENEFITS

Compact and space-saving design
Economically advantageous All-in-One solution
Independent operation in emergency of total power failure

Engine driven pump supported Starting System

Engine driven pump supported Starting System

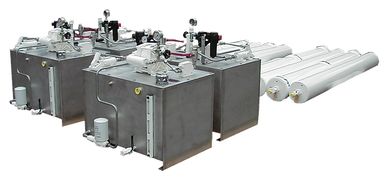

Hydraulic Starting System with an air driven pump

FEATURES

Designed and manufactured to any standards and classifications (ASME, PED, BV, DNV, LR, GL, ABS, etc.)
Also available with explosion-proof design

BENEFITS

Compact and space-saving design
Economically advantageous All-in-One solution
Customised solution that fulfils all requirements and specifications
Black start capability
Virtually maintenance free and cost saving solution

Hydraulic Starting System with an air driven pump

Hydraulic Starting System with an electric motor driven pump

Hydraulic Starting System with an air driven pump

FEATURES

Designed and manufactured to any standards and classifications (ASME, PED, BV, DNV, LR, GL, ABS, etc.)
Also available with explosion-proof design

BENEFITS

Customised solution that fulfils all requirements and specifications
Economically advantageous All-in-One solution
Black start capability
Virtually maintenance free cost saving solution

Hydraulic Starting System with an electric motor driven pump

Hydraulic Starting System with an electric motor driven pump

Hydraulic Starting System with an electric motor driven pump

FEATURES

Designed and manufactured to any standards and classifications (ASME, PED, BV, DNV, LR, GL, ABS, etc.)
Also available with explosion-proof design

BENEFITS

Customised solution that fulfils all requirements and specifications
Economically advantageous All-in-One solution
Black start capability
Virtually maintenance free and cost saving solution

Hydraulic Starting System with an electric motor driven pump

Hydraulic Starting System with an electric motor driven pump

Hydraulic Starters

A Series (CMO)

The A series is not to be underestimated. Although small and extremely light (11 lbs), this starter provides quite a punch with 15 ft-lbs of torque and the ability to turn at 7000 RPM. This translates into extremely fast engine starting of engines up to 9 litres (549 cu. in.). These smaller engines are quite common on lifeboats, which is a prime example when fast starting is paramount.

B Series (CMA)

The B series starter is by far the model that is offered in the most variations. This starter is commonly relied upon for dependable starting with the combination of torque and modularity. Providing 45 ft-lbs of torque in a 17 lb package, the B series starter is a workhorse. Depending on conditions, the B series starter cranks up to 18 liter (1098 cu. in.) engines which are quite common in the marine industry.

C Series (CMD-2A)

The C series starter fits a vast array of engines with a bit of overlap on both the low and high ends. This model features 72 ft-lbs of torque in only a 35 lb product commonly used in applications which include blenders, gen-sets and pumping engines.

D Series (CMD-3A)

This model convincingly produces 120 ft-lbs of torque in only a 40 lb package. D series starters are common in numerous applications, including fire pumps, gensets and frac pumps. This model of starter dependably starts engines up to 41 liter displacement (2500 cu. in.).

E Series (CME-5A)

The starter of choice by engine OEM’s, the E series repeatedly produces 200 ft-lb of torque. While weighing significantly less than other gear motor driven starters at 46 lbs, the E Series provides more power per pound than others. The E Series starter can be found in applications including, but not limited to frac pumps, emergency gen-sets and fire pumps on offshore platforms. The E series can start an engine up to 100 litres (6100 cu. in.).

Hydraulic Starter - ATEX

A1-09B1106-TR114-K - Hydraulic Starter

A1-09B1106-TJ096 - Hydraulic Starter

FEATURES

Ideal for explosion-proof areas
Spark-free BE-Pinion
Smooth Soft Engagement Valve
Flexible mounting inside of existing system

BENEFITS

With over 90% efficiency for faster engine drive
Eliminates shockwaves and reduces mechanical wear
Provides the same high torque at lower temperature
Custom-tailored starter suitable for all engine types

A1-09B1106-TJ096 - Hydraulic Starter

A1-09B1106-TR114-K - Hydraulic Starter

A1-09B1106-TJ096 - Hydraulic Starter

FEATURES

Displacement: 0.50 in3/REV [8.2 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 15 ft-lbs [20 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Outside Gear Dia.: 1.36 in. [35 mm.]
Pitch Dia.: 1.06 in. [27 mm.]
Pressure Angle: 15°
Root Dia.: 0.85 in. [22 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

A1-09B1106-TR114-K - Hydraulic Starter

A1-09B1106-TR114-K - Hydraulic Starter

A1-09B1106-TR114-K - Hydraulic Starter

FEATURES

Displacement: 0.50 in3/REV [8.2 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 15 ft-lbs [20 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Outside Gear Dia.: 1.36 in. [35 mm.]
Pitch Dia.: 1.06 in. [27 mm.]
Pressure Angle: 15°
Root Dia.: 0.85 in. [22 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

A1-12D2150-1A200 - Hydraulic Starter

A1-12D2150-1A200 - Hydraulic Starter

A1-09B1106-TR114-K - Hydraulic Starter

FEATURES

Displacement: 0.50 in3/REV [8.2 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 15 ft-lbs [20 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12/13
Outside Gear Dia.: 1.83 in. [46 mm.]
Pitch Dia.: 1.50 in. [38 mm.]
Pressure Angle: 20°
Root Dia.: 1.38 in. [35 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

A1-12D2150-3A200 - Hydraulic Starter

A1-12D2150-1A200 - Hydraulic Starter

A1-12D2150-3A200 - Hydraulic Starter

FEATURES

Displacement: 0.50 in3/REV [8.2 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-3
Max Torque: 15 ft-lbs [20 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12/13
Outside Gear Dia.: 1.83 in. [46 mm.]
Pitch Dia.: 1.50 in. [38 mm.]
Pressure Angle: 20°
Root Dia.: 1.38 in. [35 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

A1-13A1128-T0094 - Hydraulic Starter

A1-12D2150-1A200 - Hydraulic Starter

A1-12D2150-3A200 - Hydraulic Starter

FEATURES

Displacement: 0.50 in3/REV [8.2 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 15 ft-lbs [20 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 13/13.66
Outside Gear Dia.: 1.60 in. [41 mm.]
Pitch Dia.: 1.28 in. [33 mm.]
Pressure Angle: 14.5°
Root Dia.: 1.17 in. [30 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-09B1106-1A200 - Hydraulic Starter

B1-09B1106-1A200 - Hydraulic Starter

B1-09B1106-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 9
Outside Gear Dia.: 1.36 in. [35 mm.]
Pitch Dia.: 1.06 in. [27 mm.]
Pressure Angle: 15°
Root Dia.: 0.85 in. [22 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-09D2113-1A200 - Hydraulic Starter

B1-09B1106-1A200 - Hydraulic Starter

B1-09B1106-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 9
Outside Gear Dia.: 1.45 in. [37 mm.]
Pitch Dia.: 1.13 in. [29 mm.]
Pressure Angle: 20°
Root Dia.: 1.00 in. [25 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-10D2125-1A200 - Hydraulic Starter

B1-09B1106-1A200 - Hydraulic Starter

B1-10D2125-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 10
Outside Gear Dia.: 1.58 in. [40 mm.]
Pitch Dia.: 1.25 in. [32 mm.]
Pressure Angle: 20°
Root Dia.: 1.13 in. [29 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-10E2100-1A200 - Hydraulic Starter

B1-10E2100-1A200 - Hydraulic Starter

B1-10D2125-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 10/11
Outside Gear Dia.: 1.27 in. [32 mm.]
Pitch Dia.: 1.00 in. [25 mm.]
Pressure Angle: 20°
Root Dia.: 0.89 in. [23 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-11B1130-1A200 - Hydraulic Starter

B1-10E2100-1A200 - Hydraulic Starter

B1-11B1130-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Outside Gear Dia.: 1.62 in. [41 mm.]
Pitch Dia.: 1.30 in. [33 mm.]
Pressure Angle: 15°
Root Dia.: 1.11 in. [28 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-11C2183-3A200 - Hydraulic Starter

B1-10E2100-1A200 - Hydraulic Starter

B1-11B1130-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-3
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 11/12
Outside Gear Dia.: 2.24 in. [57 mm.]
Pitch Dia.: 1.83 in. [46 mm.]
Pressure Angle: 20°
Root Dia.: 1.69 in. [43 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-12D2150-2A200 - Hydraulic Starter

B1-12D2150-2A200 - Hydraulic Starter

B1-12D2150-2A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-2
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 1.83 in. [46 mm.]
Pitch Dia.: 1.50 in. [38 mm.]
Pressure Angle: 20°
Root Dia.: 1.38 in. [35 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B1-12D2150-3A200 - Hydraulic Starter

B1-12D2150-2A200 - Hydraulic Starter

B1-12D2150-2A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-3
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 1.83 in. [46 mm.]
Pitch Dia.: 1.50 in. [38 mm.]
Pressure Angle: 20°
Root Dia.: 1.38 in. [35 mm.]
Rotation: CW
Speed Range: 0-7000 RPM

B2-10D2125-1A200 - Hydraulic Starter

B1-12D2150-2A200 - Hydraulic Starter

B2-10D2125-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-1
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 10
Outside Gear Dia.: 1.58 in. [40 mm.]
Pitch Dia.: 1.25 in. [32 mm.]
Pressure Angle: 20°
Root Dia.: 1.13 in. [29 mm.]
Rotation: CCW
Speed Range: 0-7000 RPM

B2-12C2200-3A200 - Hydraulic Starter

B2-12C2200-3A200 - Hydraulic Starter

B2-10D2125-1A200 - Hydraulic Starter

FEATURES

Displacement: 1.35 in3/REV [22 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-3
Max Torque: 45 ft-lbs [61 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12/12
Outside Gear Dia.: 2.24 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.69 in. [43 mm.]
Rotation: CCW
Speed Range: 0-7000 RPM

C1-11C2200-30173 - Hydraulic Starter

B2-12C2200-3A200 - Hydraulic Starter

C1-11C2200-30173 - Hydraulic Starter

FEATURES

Displacement: 2.00 in3/REV [3.3 cm3/REV]
Duty Cycle: Intermittent
Flange: Flange Spacer
Max Torque: 72 ft-lbs [98 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 11/12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.71 in. [43 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

C1-11C2200-30200 - Hydraulic Starter

B2-12C2200-3A200 - Hydraulic Starter

C1-11C2200-30173 - Hydraulic Starter

FEATURES

Displacement: 2.00 in3/REV [3.3 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 72 ft-lbs [98 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 11/12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.71 in. [43 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

C1-12D2150-30200 - Hydraulic Starter

C1-12D2150-30200 - Hydraulic Starter

C1-12D2150-30200 - Hydraulic Starter

FEATURES

Displacement: 2.00 in3/REV [3.3 cm3/REV]
Duty Cycle: Intermittent
Flange: SAE-3
Max Torque: 72 ft-lbs [98 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12/13
Outside Gear Dia.: 1.81 in. [45 mm.]
Pitch Dia.: 1.50 in. [38 mm.]
Pressure Angle: 20°
Root Dia.: 1.38 in. [35 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

D1-12C2200-3L200 - Hydraulic Starter

C1-12D2150-30200 - Hydraulic Starter

C1-12D2150-30200 - Hydraulic Starter

FEATURES

Displacement: 3.50 in3/REV [8.9 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 120 ft-lbs [163 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

D1-12C2200-3R200 - Hydraulic Starter

C1-12D2150-30200 - Hydraulic Starter

D1-12C2200-3R200 - Hydraulic Starter

FEATURES

Displacement: 3.50 in3/REV [8.9 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 120 ft-lbs [163 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

D1-12C2200-30173 - Hydraulic Starter

D1-12C2200-30173 - Hydraulic Starter

D1-12C2200-3R200 - Hydraulic Starter

FEATURES

Displacement: 3.50 in3/REV [8.9 cm3/REV]
Duty Cycle: Intermittent
Flange: Flange Spacer
Max Torque: 120 ft-lbs [163 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

D1-12C2200-30200 - Hydraulic Starter

D1-12C2200-30173 - Hydraulic Starter

D1-12C2200-30200 - Hydraulic Starter

FEATURES

Displacement: 3.50 in3/REV [8.9 cm3/REV]
Duty Cycle: Intermittent
Max Torque: 120 ft-lbs [163 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-4500 RPM

E1-11C2200-30200 - Hydraulic Starter

D1-12C2200-30173 - Hydraulic Starter

D1-12C2200-30200 - Hydraulic Starter

FEATURES

Displacement: 5.88 in3/REV [96.3 cm3REV]
Duty Cycle: Intermittent
Max Torque: 200 ft-lbs [271 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 11
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-3000 RPM

E1-12C2200-3R200 - Hydraulic Starter

E1-12C2200-3R200 - Hydraulic Starter

E1-12C2200-3R200 - Hydraulic Starter

FEATURES

Displacement: 5.88 in3/REV [96.3 cm3REV]
Duty Cycle: Intermittent
Max Torque: 200 ft-lbs [271 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-3000 RPM

E1-12C2200-30200 - Hydraulic Starter

E1-12C2200-3R200 - Hydraulic Starter

E1-12C2200-3R200 - Hydraulic Starter

FEATURES

Displacement: 5.88 in3/REV [96.3 cm3REV]
Duty Cycle: Intermittent
Max Torque: 200 ft-lbs [271 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-3000 RPM

E1-12C2200-30200 - Hydraulic Starter

E1-12C2200-3R200 - Hydraulic Starter

E1-12C2200-30200 - Hydraulic Starter

FEATURES

Displacement: 5.88 in3/REV [96.3 cm3REV]
Duty Cycle: Intermittent
Max Torque: 200 ft-lbs [271 Nm]
Max Working Pressure: 3000 PSI [207 bar]
Number of Teeth: 12
Outside Gear Dia.: 2.25 in. [57 mm.]
Pitch Dia.: 2.00 in. [51 mm.]
Pressure Angle: 20°
Root Dia.: 1.72 in. [44 mm.]
Rotation: CW
Speed Range: 0-3000 RPM
