Current Transformers

ASR


  • Designed for round cables
  • Primary current: 40 to 600 A
  • Burden from 1.0 to 10 VA

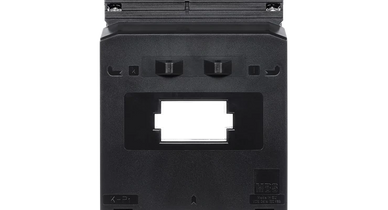

ASK


  • Designed for round cables and busbar
  • Primary current: 40 to 7,500 A
  • Burden from 1.0 to 30 VA

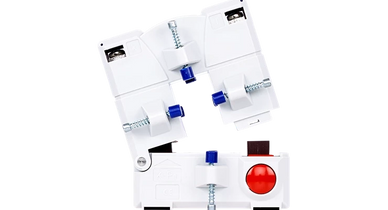

KBU


DEIF's split-core current transformers are cost-saving and easy-to-install units for responsible and efficient energy management solutions and for retrofitting existing installations.

SASR


Part of DEIF's current transformer range, the protection transformers are used for over-current and earth fault protection in balanced protection systems. DEIF offers 14 different physical sizes of the protection transformers.

  • Designed for round cables
  • Primary current: 100 to 300 A Class: 5P5, 5P10

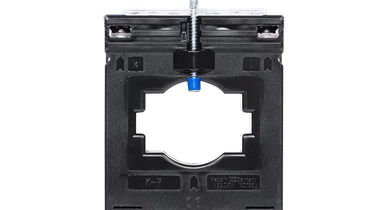

SASK


Part of DEIF's current transformer range, the protection transformers are used for over-current and earth fault protection in balanced protection systems. DEIF offers 14 different physical sizes of the protection transformers.

  • Designed for round cables and busbar.
  • Primary current: 50 to 1,600 A. Class: 5P4, 5P5, 5P10, 10P5, 10P10.

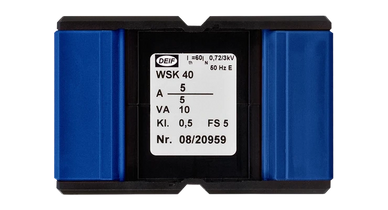

WSK


Primary Winding Transformer, WSK, is the perfect choice for low currents in the range 1 A to 100 A.

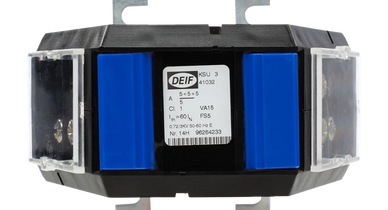

KSU


Part of DEIF's current transformer range, the summation transformers summarise the secondary currents of up to 8 main current transformers to a common secondary signal.

  • For 2 or 3 inputs
  • Burden from 5 to 15 VA

SUSK


Part of DEIF's current transformer range, the summation transformers summarise the secondary currents of up to 8 main current transformers to a common secondary signal.

  • For 3 to 8 inputs
  • Burden from 5 to 30 VA

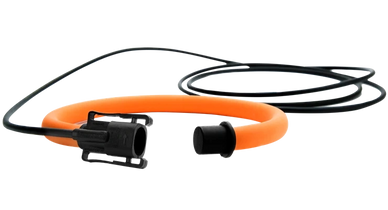

FCT


 DEIF´s FCT flexible current transformers are an accessory for DEIF’s MIC-2 MKII FCT and MIC-2 MKII FCT DIN multi-instruments.
